LAR100 Solar Pump Inverter 4.0KW 5HP 380V 3Phase

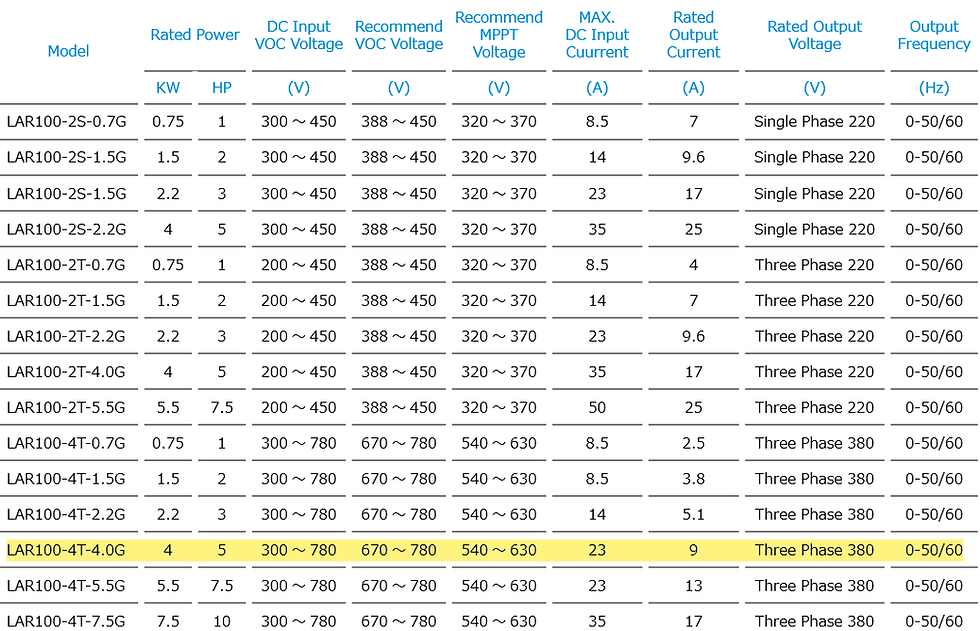

Model numbers on name plate consit of numbers,symbols,and letters,to express its respective series,suitable power type,power level and other information.
◎Apply to all kinds of single phase or 3 phase AC induction motor. ◎With Infineon IGBT. Maximum power point tracking(MPPT)algorithm for dynamic VI, fast response speed,Good stability, the efficiency of MPPT 99. 99%; ◎Both AC and DC input, but can not use dc and Ac at the same time. ◎ For single phase inverter, MPPT working voltage is 180V-450V; for three phase inverter, MPPT working voltage is 250V-800V. ◎Remote control, support RS323/RS485 protocol. ◎Outdoor working environment temperature: -10～+50℃. ◎Start in the morning and stop in the late afternoon full automatically. ◎Full protections: overload, over current, over voltage, under voltage, short circuit, dry pumping etc. ◎PV reversed connection protection.
